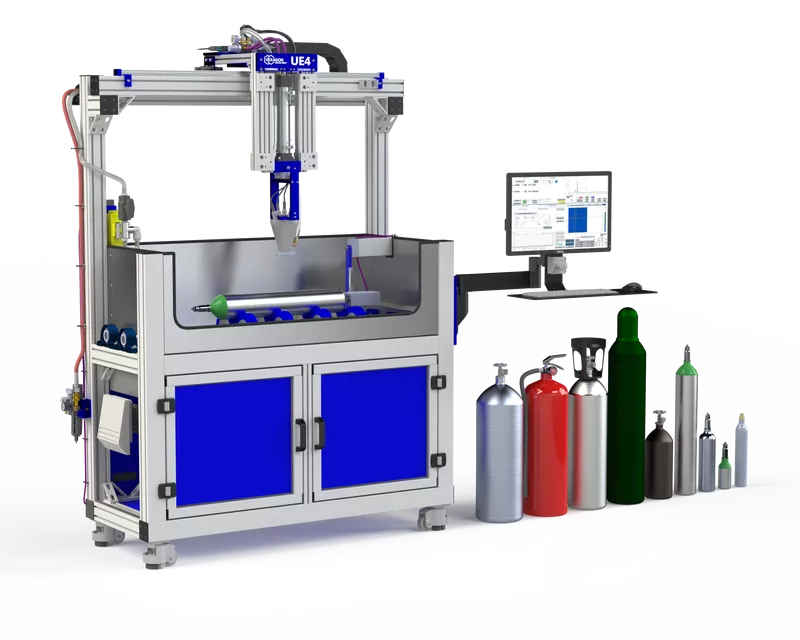

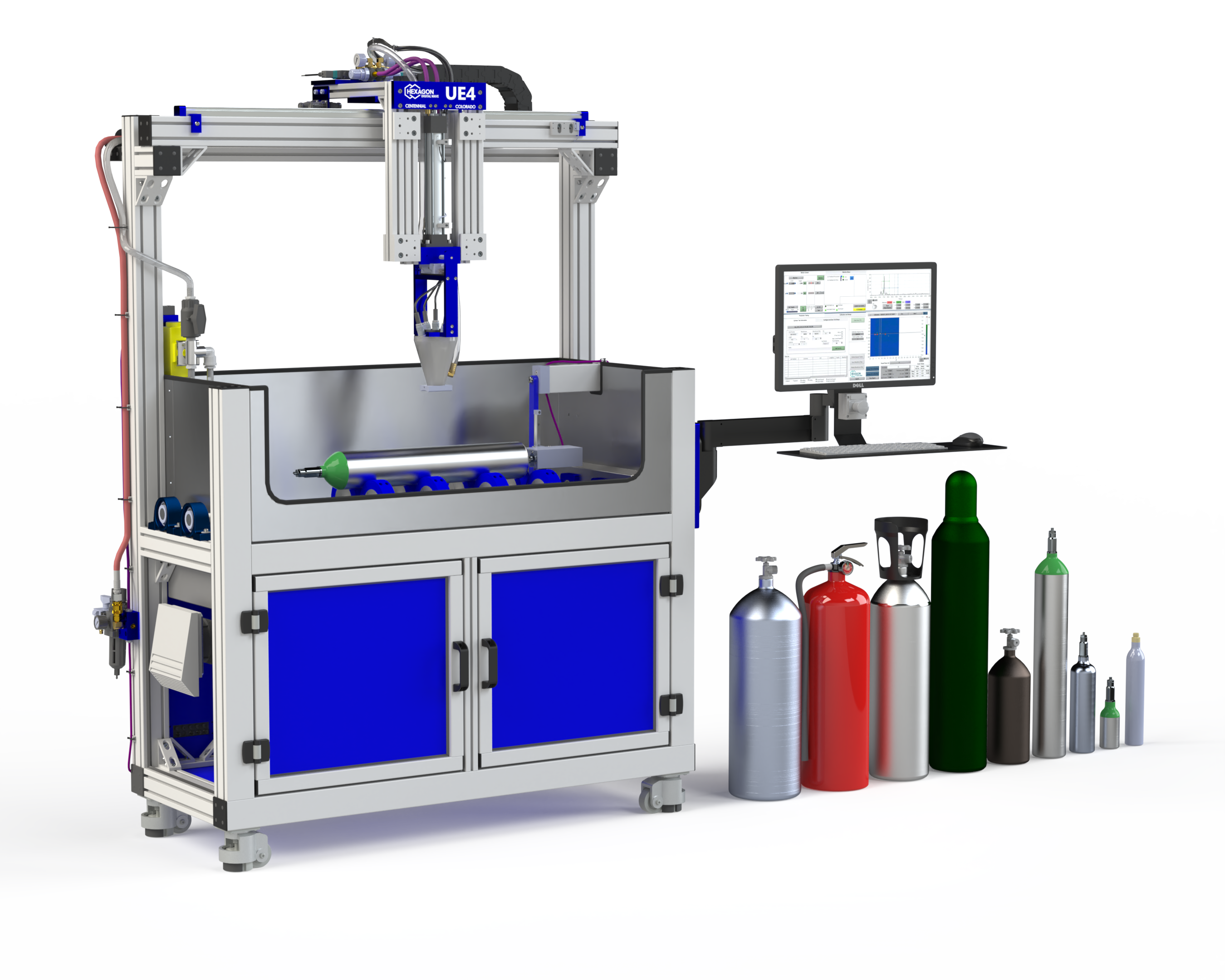

UE4
The latest innovation within Ultrasonic Examination testing equipment
Hexagon Digital Wave is excited to announce the release of the UE4, our latest innovation within Ultrasonic Examination (UE). With 20+ years of experience and having sold UE testing equipment in over 40 countries worldwide, Hexagon Digital Wave has developed the UE 4 machine specifically for small beverages, medical oxygen and handheld cylinders.
Advanced technology
The UE4 incorporates the same advanced ultrasonic examination technology that Hexagon Digital Wave is renowned for, ensuring precise and reliable inspection results.
High throughput
Engineered for efficiency, the UE4 is capable of handling high volumes of cylinders, making it an ideal solution for testers that demand rapid processing without compromising on accuracy
Compliance
Using our patent-pending vacuum-coupled rotary encoder, the system simplifies cylinder handling while uniquely being the only solution on the market that verifies compliance with European and North American inspection standards
Compact and Mobile design
- Small footprint: Measuring just 5 feet (1.52 meters) in length and 3 feet (0.91 meters) in depth, the UE4 is compact enough to fit into tight spaces, optimizing your facility's layout.
- Mobility: Equipped with castors, the UE4 can be easily moved within your facility, offering flexibility and convenience.
- Easy setup: The UE4 requires only a standard 110V electrical outlet, simplifying installation and reducing setup time.
Versatile cylinder handling
- Cylinder size range: The UE4 can accommodate cylinders with outside diameters ranging from 2.2 inches (5.6 centimeters) to 8.5 inches (21.6 centimeters) and heights from 8 inches (20.3 centimeters) to 36 inches (91.4 centimeters), including those with valves.
- Weight restriction: The system is capable of testing cylinders up to 50 lbs in weight (22.7 kilograms),
Takt times for common cylinders
The quick tact times highlight the UE4's capability to efficiently handle a wide range of cylinder types, further enhancing its value in high-volume environments.
| Type of cylinder |
|---|
| Soda stream: 32 seconds |
| M6: 44 seconds |
| Med E: 1 minute 10 seconds |
| M: 1 minute 15 seconds |
The UE4'scombination of high throughput capabilities, compact size, and ease of mobility and setup makes it an invaluable addition to any facility requiring efficient and accurate ultrasonic examination of hand-loaded cylinders.
